Convolutional Neural Network

Notes from the summary of COMP3010 Lecture 7, labs, and online resources.

Convolutional Neural Networks (CNN) Overview

MLP vs. CNN

• MLP (Fully Connected Layers): Best suited for tabular data. Each input feature is treated independently, and spatial structure is lost.
• CNN: Designed for image data with spatial hierarchies. Preserves spatial relationships between pixels.

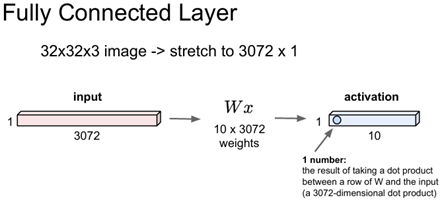

Fully Connected Layers (MLP)

• A 32×32×3 RGB image is flattened to 3072×1 to be input into a fully connected layer.
• Every pixel is treated as an independent value, connected to every neuron.
• Issue: Flattening discards spatial information—neighboring pixels lose context.

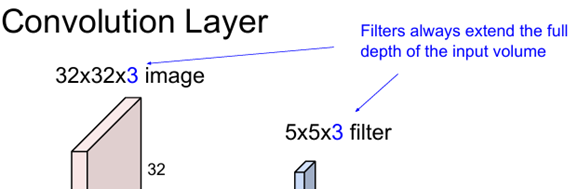

Convolutional Layers

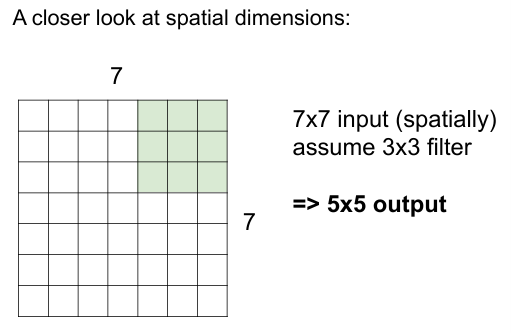

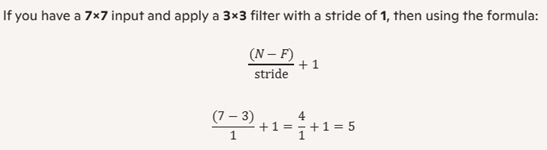

• Apply filters (e.g., 5×5×3) that slide over the image.
• Preserve spatial relationships and detect local patterns like edges, textures, and shapes.
• Filters span the full depth of the input (e.g., 3 channels for RGB).
• Fewer parameters due to weight sharing across the image—same filters scan different regions.

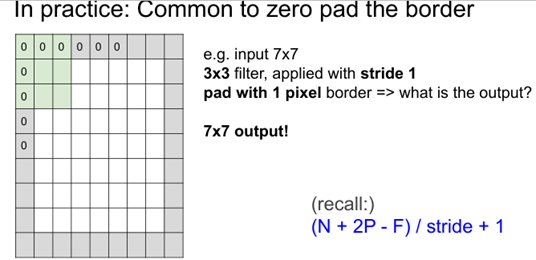

Padding

• Zero-padding is often added to input borders to maintain spatial dimensions.
• Prevents the feature map from shrinking too quickly and helps retain edge information.
• Important for deeper layers to process meaningful spatial data.

Parameter Efficiency in CNNs

• Parameters reside in the filters (e.g., 5×5×3 = 75 weights per filter).
• Example: 10 such filters → 750 weights + 10 biases = 760 parameters.
• Compared to MLPs: 3072 inputs × 1024 neurons = ~3 million weights.
• CNNs reduce parameters by reusing the same filters across the entire image.

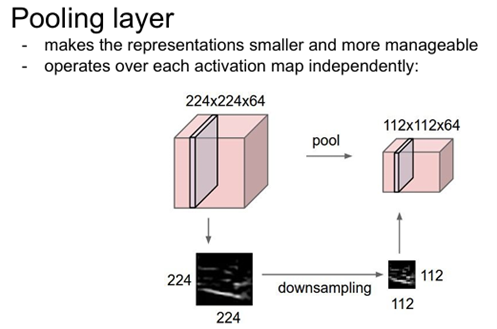

Pooling Layers

• No parameters (no weights or biases).
• Perform operations like max pooling or average pooling to reduce spatial dimensions.
• Benefits:
  • Reduce computational cost
  • Introduce translation invariance
  • Summarize local features

CNN Architectures

• Convolutional Layer: Preserves spatial layout via local connections and shared filters. Introduces receptive fields and captures low- to high-level patterns.
• Pooling Layer: Reduces dimensionality and retains key features.
• Fully Connected Layer: Final layer that performs classification or regression.

Notable Architectures

• AlexNet: First CNN to win ImageNet; proved CNNs are viable for vision tasks.
• VGGNet: Used deeper networks with small (3×3) filters.
• GoogLeNet: Introduced inception modules; removed fully connected layers.
• ResNet: Added residual connections; allowed very deep networks.
• MobileNet, ShuffleNet: Lightweight models optimized for speed and efficiency.
• Neural Architecture Search: Automates CNN architecture design.

Transfer Learning

• Use a CNN trained on a large dataset (e.g., ImageNet) to fine-tune for a smaller custom dataset.
• Techniques:
  • Freeze lower layers (if new data is similar)
  • Fine-tune entire model (if new data is different)
  • Use pre-trained CNN as a feature extractor

Available through model zoos in PyTorch, TensorFlow, etc.

Key Concepts

Comparing Convolutional vs. Fully Connected Layers

Feature	Convolutional Layers	Fully-Connected Layers
Connectivity	Local (receptive field)	Global (all-to-all)
Parameters	Shared across spatial locations	Unique weights for every input-neuron pair
Feature Learning	Spatial hierarchies (edges, patterns)	Global relationships
Input Format	Multi-dimensional arrays (images)	Flattened 1D vectors

Translation Equivariance: CNNs preserve spatial structure. If an object moves, the activation shifts accordingly.

Role of Pooling Layers

• Dimensionality Reduction: Downsample feature maps.
• Translation Invariance: Makes features robust to small shifts.
• Feature Summarization: Capture dominant features in local regions.

Common types:

• Max Pooling: Retains maximum value
• Average Pooling: Computes average in region

Receptive Field

• The area of the input that influences a particular neuron’s activation.
• Deeper layers see progressively larger input regions.

Effective Receptive Field for Three 3×3 Conv Layers (stride = 1):

• 1st layer: 3×3
• 2nd layer: 5×5 (3 + 2)
• 3rd layer: 7×7 (5 + 2)

Parameter Count for 3 Layers (assuming constant channels $C$):

• Each: $3×3×C×C + C = 9C^2 + C$
• Total: $3×(9C^2 + C) = 27C^2 + 3C$

CNN Troubleshooting & Strategies

Low Accuracy (Train + Test)

• Check dataset: Cleanliness, label accuracy, class balance
• Model architecture: May be too simple or too complex
• Hyperparameters: Adjust learning rate, batch size, epochs
• Preprocessing: Normalize inputs; verify augmentations
• Debugging: Check for implementation bugs

High Training, Low Test Accuracy

• Overfitting mitigation:
  • Data Augmentation
  • Dropout
  • L1/L2 Regularization
  • Batch Normalization
  • Early Stopping
• Improving Generalization:
  • Collect more data
  • Try different architectures
  • Use Transfer Learning
  • Optimize hyperparameters for validation performance
